10Gbps USB3.2 Active Optical Cable for Logitech MeetUp Camera-30m
-USB3.2 Gen2 10Gbps “SuperSpeed” (4K Webcam, SSD storage)
-Backward compatible with USB 3.0/2.0
-Extended length up to 50m with USB2.0
-Practically Zero EMI/RFI profile for flawless performance
-Hybrid Fiber/Copper design requires no external power
When deploying professional video conferencing systems such as Logitech Rally Camera, Logitech Tap, and Logitech Meetup, one of the biggest challenges is long-distance, stable USB signal transmission.
Traditional copper USB cables are limited in distance and prone to signal degradation, especially in large meeting rooms or integrated AV installations.
While original Logitech USB Cables costs a million, the AOCFiberlink FUCAC-3204 USB Active Optical Cable is designed to solve this problem—offering up to 50 meters of 10Gbps high-speed, lossless transmission, at a much more reasonable cost, making it an ideal and cost-effective alternative to original Logitech cables.

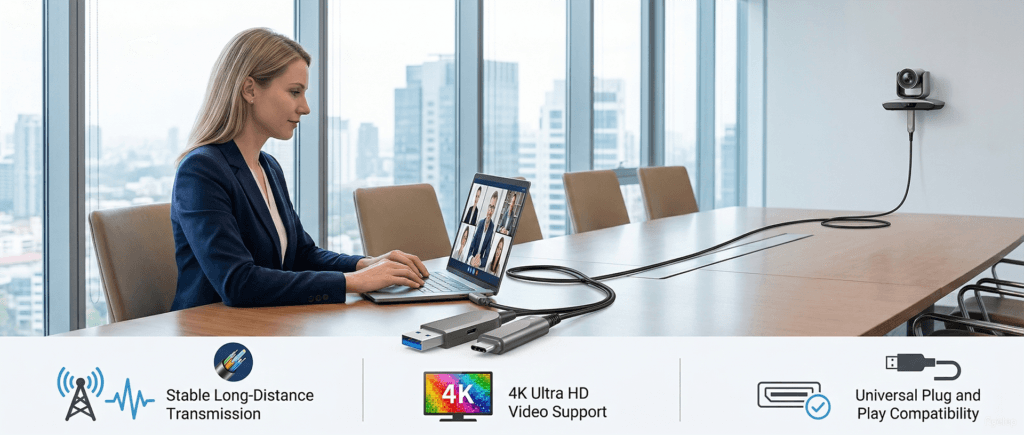

AOCFiberlink FUAC-3204 Hybrid USB3.2 Fiber Active Optical Cable application-1920
Highlight Features:
- Ultra High Speed: supports USB 3.2 Gen 2 data transfer speeds of up to 10Gbps
- Universal Compatibility: Extends USB type-A male to USBC connections including Logitech Video Cameras
- Exteneded Length: up to 50 meters (165ft)
- Backward compatible with USB 3.0 and USB 2.0
- Hot-swappable: True plug-and-play with Windows and Mac
- Durable PVC/TPE jacket for reliable protection
Communication & Control:
| USB | USB3.2 (Gen 2) | USB3.1 (Gen 2) | USB3.1 (Gen 1) | USB 2.0Max bandwidth: 10Gbps |
Power:
| Power Consumption | ≤ 0.55W (5V/110mA) |
| Power Carry | 900mA (0-10m)/600mA (11- 15m) |
Environmental:
| Operating Temperature | -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing |
| Storage Temperature | -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing |
| Max Cable Bend Radius | 40mm/1.57in |
| Max Pull Tension/Tensile Strength | 10kg/22lbs (100n) |
Dimensions & Weight:
| Length x Width x Height | Type A Male Connector: 47.5mm x 18.5mm x 5mm Type C Male Connector: 45mm x 20mm x 5mm |
| Cable Diameter | 4.9mm |
Regulatory:
| Safety and Emission | CE | FCC | RoHS |
Applications:
- Conference Room
- Digital Signage
- Gaming PC
- Hard Drives
- Home Theatre
- LED Signboards
- Mobile Terminal
- Medical imaging equipment
- Projectors
- Security monitoring system
- Scanners
- Touch Screens
- Webcams and Access Control Systems

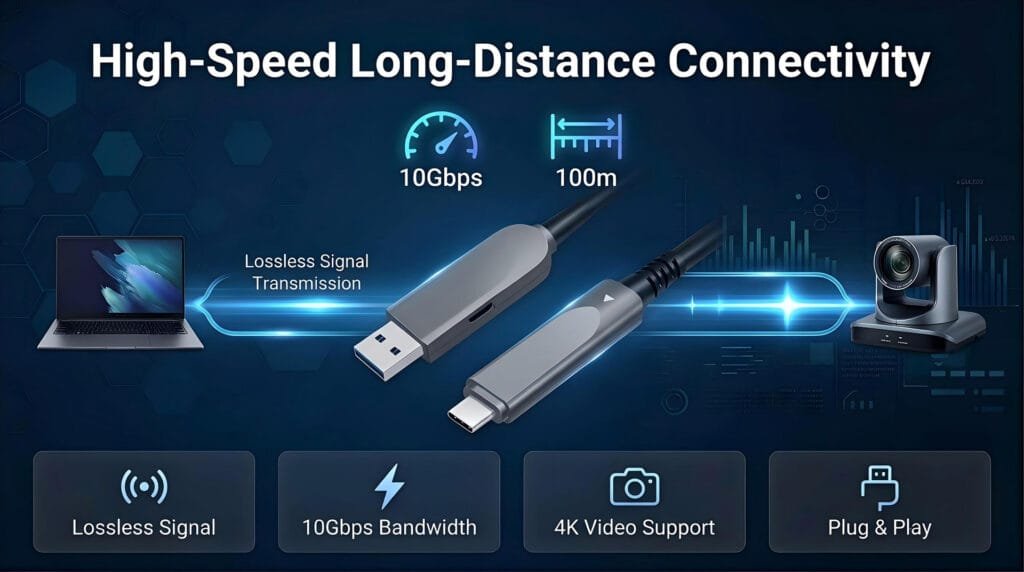

AOCFiberlink FUAC-3204 Hybrid USB3.2 Fiber Active Optical Cable-1920
USB Connector Type References:
| USB 2.0 Type A USB 3.0 Type A USB 3.1 Type A  | USB 2.0 Type C USB 3.0 Type C USB 3.1 Type C  |
| USB 2.0 Type B
| USB 3.0 Type B
|
| USB 2.0 Micro B
| USB 3.0 Micro B
|
| USB 2.0 Mini B USB 3.0 Mini B  |
Warranty: 2 Year Warranty
Frequently Asked Questions (FAQ)
Q: Is the FUCAC-3204 fully compatible with Logitech Rally Camera?
A: Yes. It is fully compatible with Logitech Rally Camera, Rally Bar, Tap, Meetup, and other Logitech conference devices using USB-C connectivity. The cable supports the required bandwidth and power delivery for stable operation.
Q: Can I use this cable to replace the original Logitech cable?
A: Absolutely. The FUCAC-3204 is designed as a direct replacement for original Logitech USB-C cables, offering extended reach and significantly lower cost while maintaining reliable performance.
Q: What is the maximum distance this cable supports?
A: It supports up to 50 meters (approximately 164 feet) of lossless 10Gbps transmission, far exceeding the limitations of standard passive USB-C cables. If you don’t need USB2.0 data signal, the maximum length can be 100 meters.
Q: Does this cable require external power or drivers?
A: No. It is plug-and-play with no drivers required. Power is delivered through the USB-C connection, ensuring simple deployment.
Q: Is this USBC cable suitable for 4K or 8K video transmission?
A: With 10Gbps bandwidth, the cable easily handles 4K video signals required by Logitech conference cameras, making it ideal for high-quality video conferencing.
| Protocols Supported | USB 3.2 GEN 2, USB 3.0, USB 2.0 |
|---|---|
| Max. Data Rate | 10Gbps |
| Connector A | USB 3.2 Type-C |
| Connector B | USB 3.2 Type-A Male |
| Housing | Aluminum Alloy |
| Cable | Φ4.9mm Cooper+OM3 Fiber Hybrid Cable,RoHS compliant TPU Jacket |
| Min. Bending Radius | 40mm |
| Max. Length | 15 meters (50 feet) |
| Working Temperature | -20°C to 70°C (-4°F to ~ 158°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
