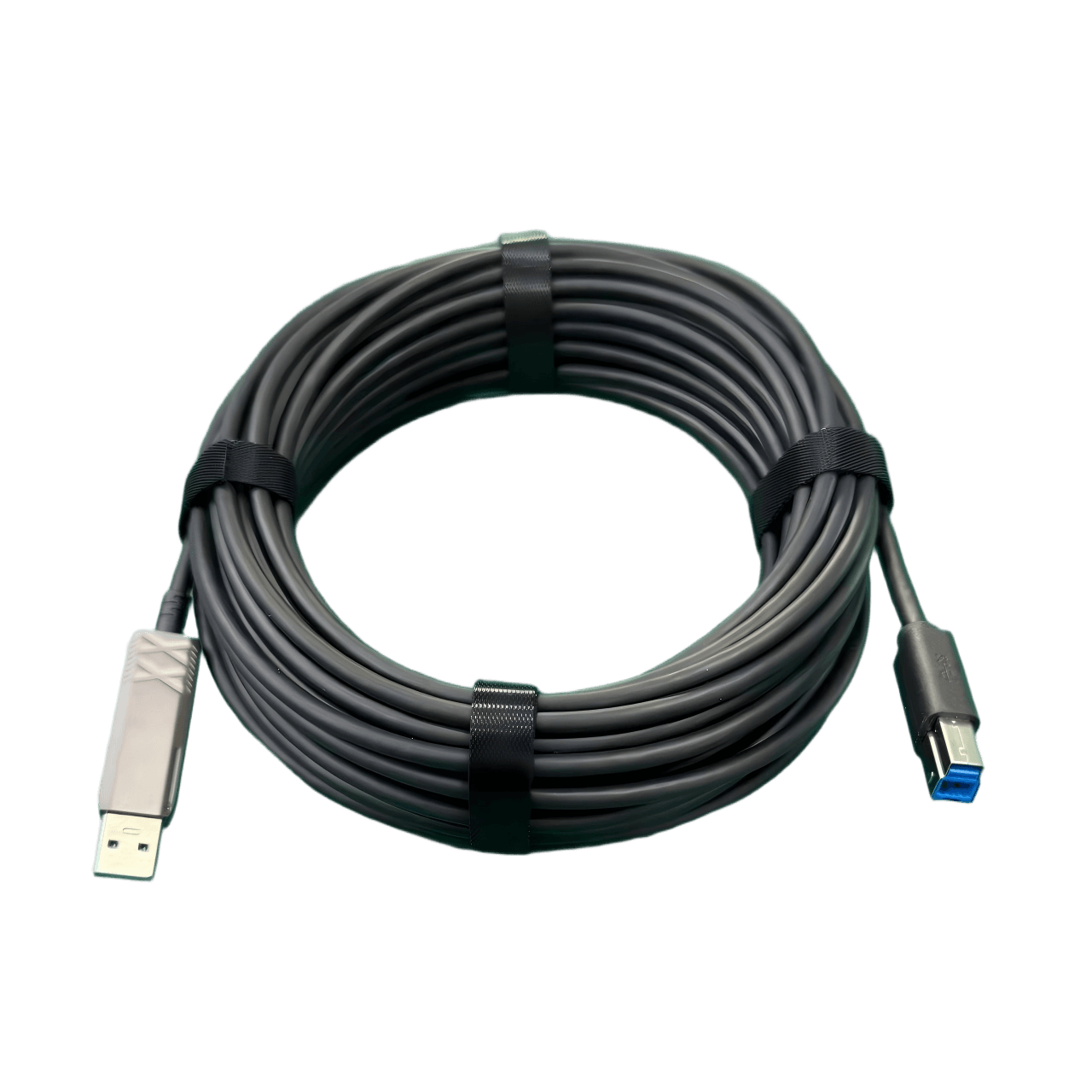

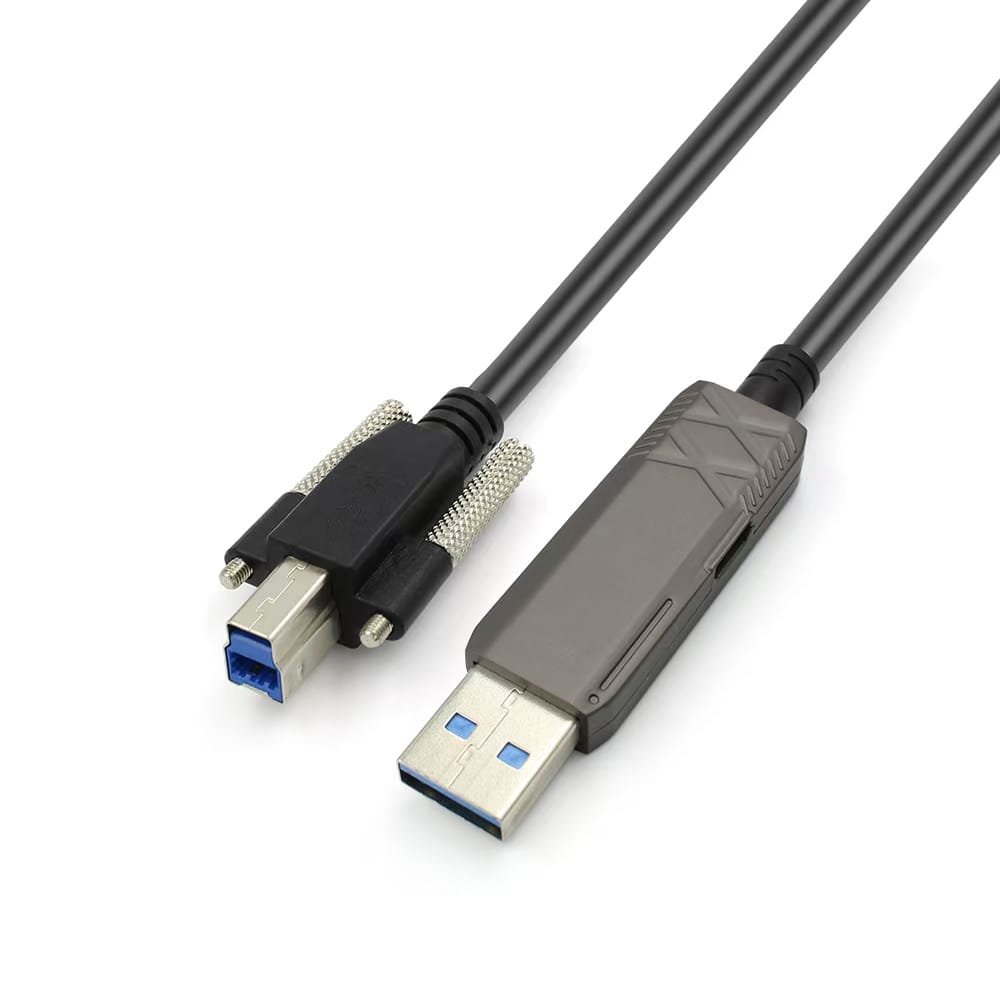

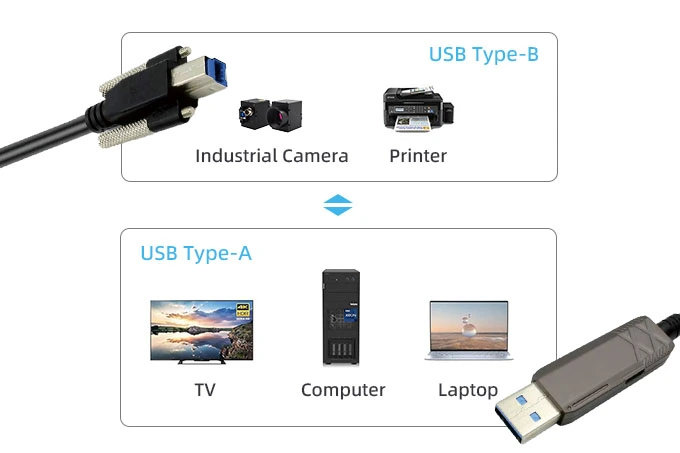

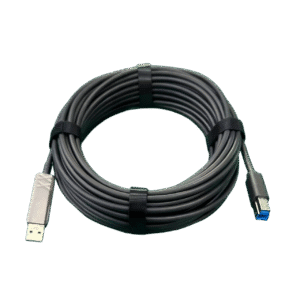

USB 3.2 Gen2 AOC-Active Optical Cable, Type-A Male(AM) to Type-B Male(BM), Hybrid 10Gbps, Custom length up to 60meters(200feet)

The FUAB-3203 Series USB 3.2 Gen2 Active Optical Cable (USB AOC)—also known as USB 3.0 Fiber Optic Cable, Optical USB Cable, or Hybrid USB AOC—is designed to meet SuperSpeed USB 3.x specifications, ensuring full compatibility with existing USB hosts, hubs, and devices. With its ultra-thin, lightweight design and long-distance transmission capability, this USB3 active optical cable provides a reliable plug-and-play solution without signal loss nor EMI interference.

Perfect for high-performance applications such as machine vision cameras, 4K/8K video capture, medical imaging, digital signage, storage devices, and HD surveillance, the FUAB-3203 USB AOC helps break distance barriers while delivering stable data transfer at 10Gbps. It is the ideal choice for industries requiring long-reach, high-speed, and interference-free USB connectivity.

Highlight Features:

• High Bandwidth: complied with the latest USB3 gen2 standards, up to 10Gbps super speed
• Backward Compatible: Supports USB 3.0 @ 5Gbps (not compatible with USB 2.0/1.1)
• Long length Transmission: Delivers lossles signals up to 60 meters (200ft)
• Power Supply: Support 5V 900mA max to the remote device
• Easy Installation: Plug and play, unidirectional design
• High Performance: 850nm VCSEL transmitter and PIN photo-detector receiver
• Universal Compatability: Supports all major operating systems including Windows, Mac OS, and Linux
• Durable Construction: Zinc-alloy housing, corrosion-resistant gold-plated connectors
• EMI Resistance: High resistance to electromagnetic interference, ensuring a safe, radiation-free environment
• Customizable: Up to 60m maximum length, custom length, logo, and packaging available

Applications:

• Industrial Control
• Digital Signage
• Home Network Integration
• Medical Device Connectivity
• KVM Extension
• Remote Desktop USB 3.0 Connections
• Security: web camera, access control
• USB 3.0 Devices Sharing: print, scan, storage

Frequently Asked Questions:

Q: Are USB 3.2 Active Fiber Optical Cables by AOCFIBERLINK compatible with all USB devices?

A: Though no USB standard currently exists for optical cables, USB 3.x Active Fiber Optical Cables by AOCFIBERLINK have been successfully tested with more than a hundred devices spanning all major consumer operating systems. In general, you can expect USB 3.x Active Fiber Optical Cables by AOCFIBERLINK to work with most self-powered USB 3.2/3.0 compliant device.

Q: Can I charge my portable device (like iPhone or iPad) with USB 3.x Active Fiber Optical Cables by AOCFIBERLINK ?

A: USB 3.x Active Fiber Optical Cables by AOCFIBERLINK are designed to be used with self-powered peripherals only. No significant power is available after powering its internal opto-electronics. A self-powered USB 3.2/3.0 hub can always be used at the peripheral (B-side) to provide power if desired.

Warranty: 2-Year Warranty
