This 8K Pure Fiber Optic HDMI2.1 Active Optical Cable is normally packed in an ESD bag+Brown Pizza Box+Master Carton Box. Custom packaging is available.
Pure Fiber 4K@144Hz 8K HDMI2.1 Active Optical Cable

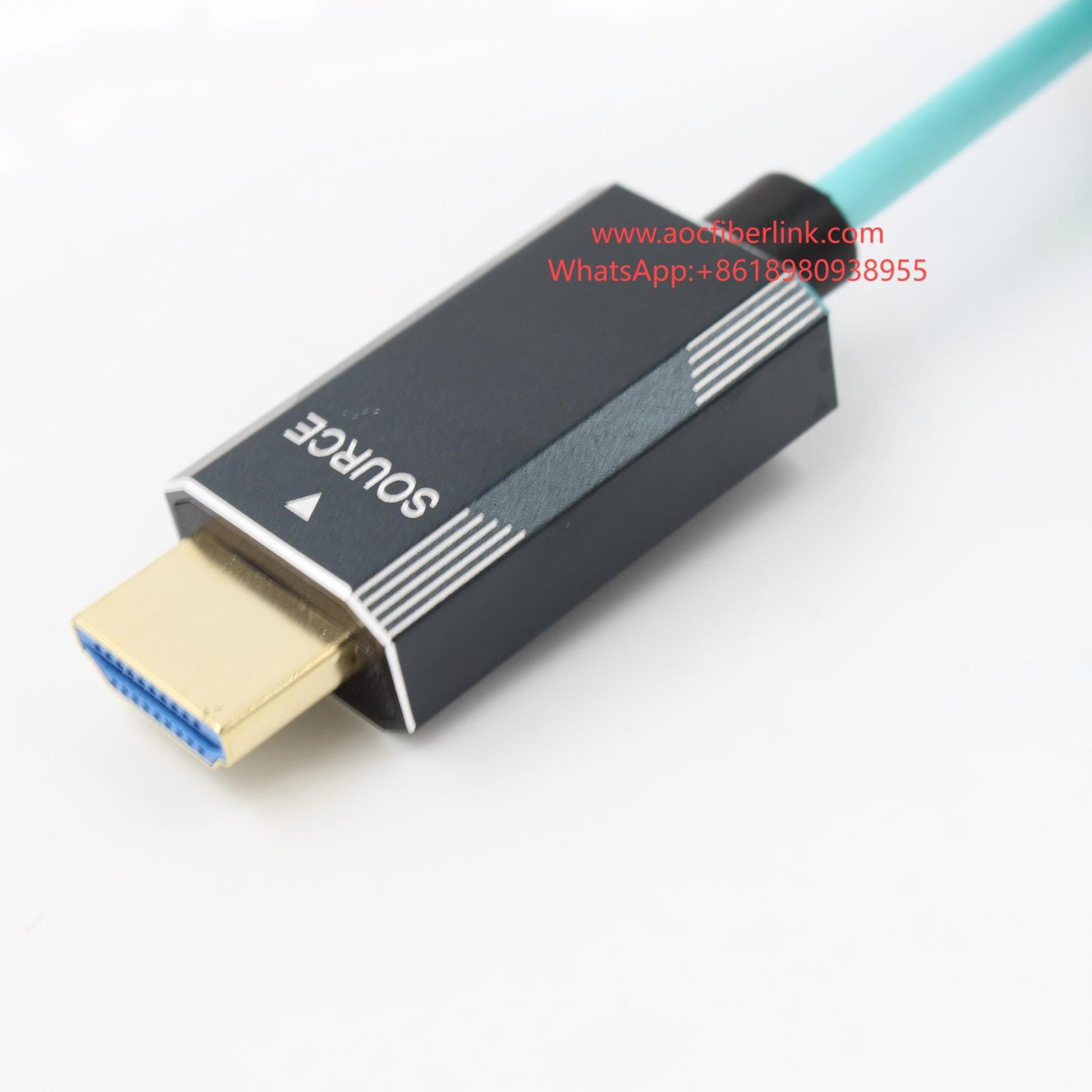

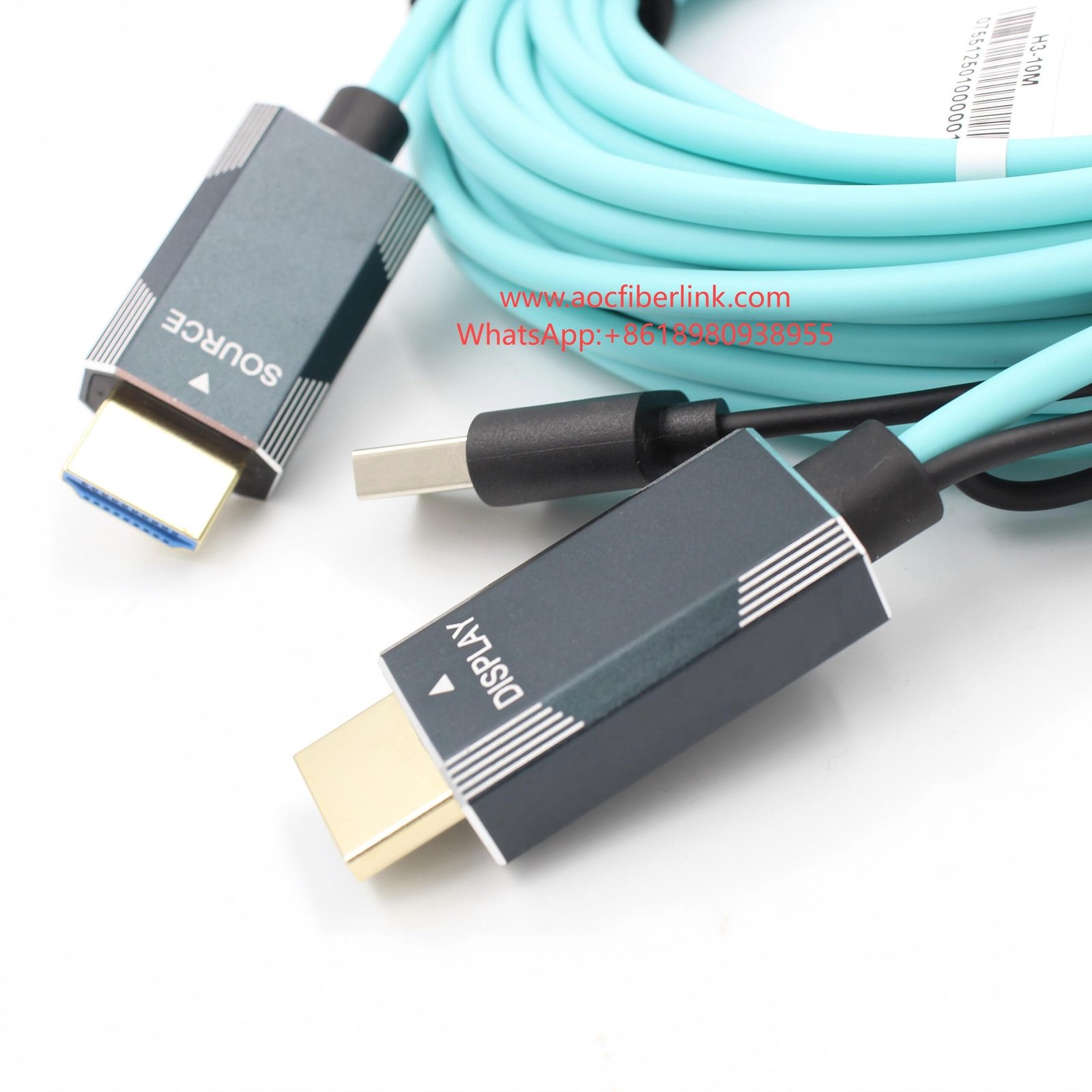

AOCFiberlink’s FPHC-2102 8K HDMI 2.1 Pure Fiber Optic Cable redefines 8K UHD connectivity. Harnessing unique AOC+ technology and latest HDMI 2.1 standards, this 8K Pure Fiber Optic HDMI cable effortlessly transmits 8K@60 Hz and 4K@144 Hz signals. Its 48 Gbps bandwidth supports Dynamic HDR, eARC, and 12-bit color depth. Custom length built for distances up to 500 meters, it eliminates electromagnetic interference and signal loss, ensuring flawless performance in AV setups, conferencing,medical imaging and high-end home theaters.
Why Choose AOCFiberlink
Ultra High Speed
Premium Zinc Alloy Shell
Features
- -Full Compatibility with any legacy HDMI TMDS up to HDMI 2.1 FRL 48Gbps full speed
- -Full Compatibility with any legacy HDCP up to HDCP 2.3 or Higher
- -Backwards compatible with HDMI 2.0/1.4/1.3
- -Supports any resolution including SD HD 3D 4K 8K 10k
- -Supports all frames rates including 4K@30 4K@60 4K@120Hz 4K@144Hz 8K@60Hz
- -Supports DSC 4K@240Hz
- -Supports 4K@144Hz 4:4:4 uncompressed
- -Full 4:4:4 HDR10+ Uncompressed (HDMI 2.1 Standard FRL 48gigabit full speed)
- -Dolby Atmos, THX, TRUE-HD, object-based audio, uncompressed 5.1 and 7.1, and 32-channel uncompressed audio
- -Full Specs HDMI 2.1 including DSC, ALLM, QFT, QMS, VRR, Dynamic HDR
Technical Specifications
Extreme Working Environment：
|
Item |
Symbol |
Minimum Value |
Maximum Value |
Unit |
|
Voltage |
VCC |
4.5 |
5.5 |
V |
|
Working Temperature |
Top |
0 |
50 |
°C |
|
Storage Temperature |
Ts |
-40 |
70 |
°C |
|
Storage Humility |
Hs |
10 |
80 |
%RH |
Recommended Working Environment：
|
Item |
Symbol |
Minimum Value |
Maximum Value |
Unit |
|
Voltage |
VCC |
4.75 |
5.25 |
V |
|
Working Temperature |
Top |
0 |
50 |
°C |
Technical Specification：
|
Item |
Description |
|
|
Source |
Transmit(Source) |
Receiver(Display) |
|
HDCP & DDC |
HDCP 2.2 Fully Support bi-directional EDID and HDCP communication |
|
|
Video Bandwidth |
Maximum 12Gbps/*4 Channels+ Clock |
|
|
Bandwidth |
Maximum48Gbps |
|
|
Solution |
4 channel 850 nm VCSEL array |
4 CH GaAs PD array |
|
Connector Type |
HDMI type A + HDMI type A |
|
|
Cable Type |
6-core OM3 Pure Fiber |
|
|
Overall Cable Diameter |
3.0mm |
|
|
Jacket Outer Material |
LSZH |
|
|
Bending Radius (Dynamic/Static) |
90mm/45mm |
|
|
Tensile Strength (Long term/Short term) |
220N/300N(without Armor) |
|
|
Crush Resistance (Long term/Short term) |
80N/150N (without Armor) |
|
|
Optional Length (Tolerance±30cm) |
15m/20m/30m/40m/50m/60m/70m/80m/90m/100m (with +/-30cm tolerance) Custom length available. |
|
|
Power Consumption |
470mW |
|
|
Power Supply |
Non external power required |
|
This 8K Pure Fiber Optic HDMI2.1 Active Optical Cable is packed in ESD bag+Brown Pizza Box+Master Carton Box.
Custom packaging is available.
Downloads
| Interface Version | HDMI 2.1 |
|---|---|
| Power Consumption | 470mW |
| Connector A | HDMI Type-A Male |

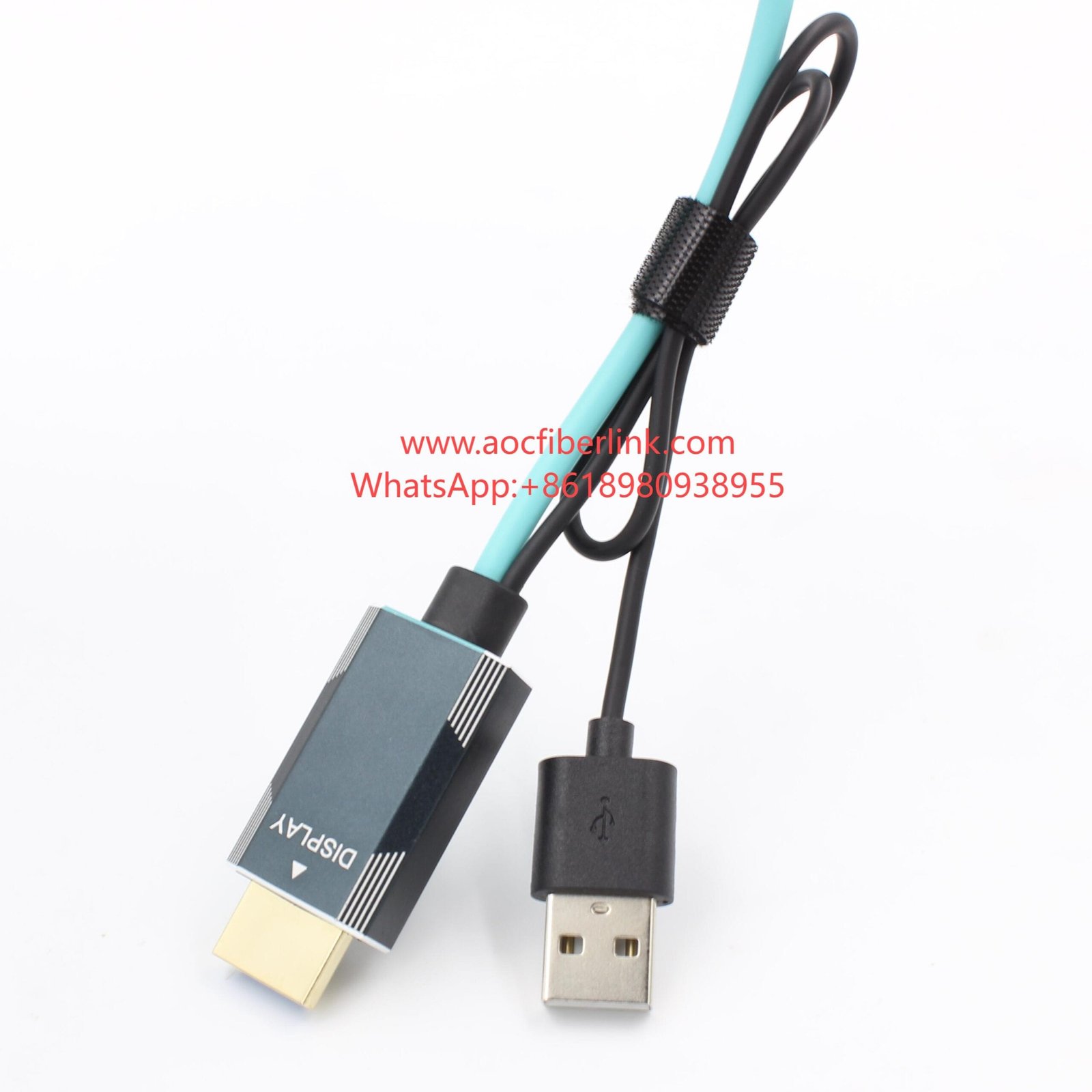

| Connector B | HDMI Type-A Male, 5V USB Y Cable for external power |
| Housing | Material: Zinc Alloy, Dimensions: 45*19.5*13mm, Color: Black |
| Cable | Φ3.0mm Pure Fiber OM3 Cable |
| Resolution | 4K@144Hz,8K@60Hz,10K@30Hz |
| Bandwidth | 48Gbps(12 Gbps x 4Channel) |
| Audio | eARC, LPCM 7.1 audio, Dolby® Digital Plus,Dolby® TrueHD, and DTS-HD® Master Audio™ |
| Color Depth | 30/36/48-bit |
| Length | Up to 1000ft(300m) |
