2024-07-08USB3.1 Fiber Active Optical Extension Cable-AM to AF-100m
-Pure Fiber Optic USB 3.0 to Type-A Male to Type-A Male Link Cable
-USB 3.0 up to 5Gbps super speed
-Practically Zero EMI/RFI profile for flawless performance
-Extend long distance up to 100m

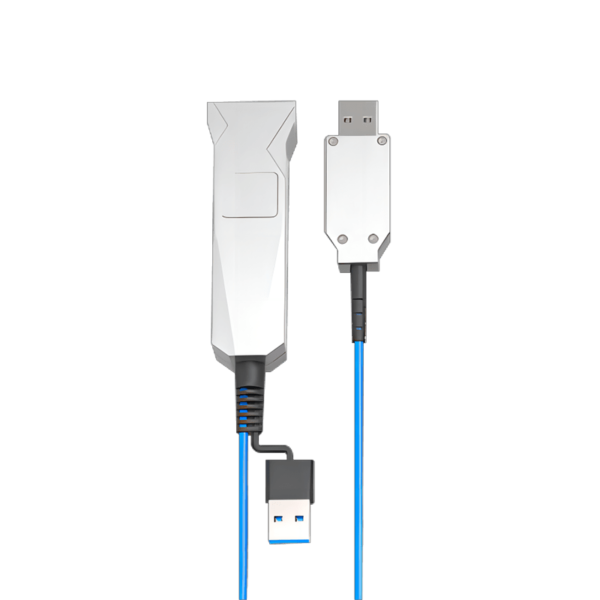

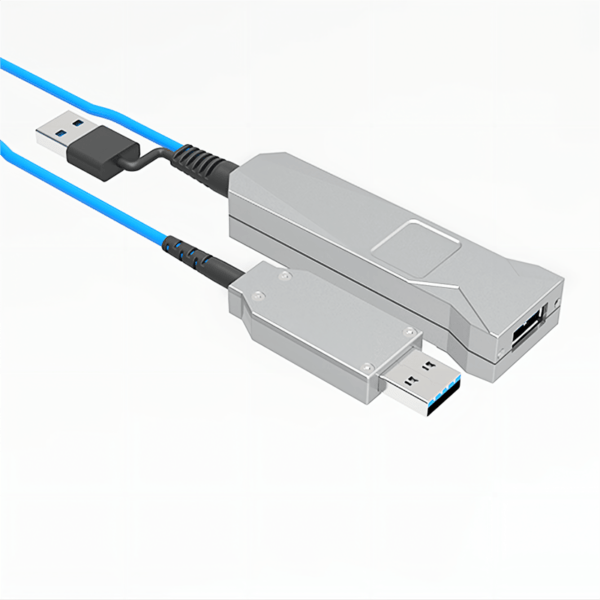

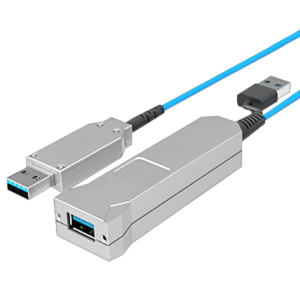

The FUBC-31AAG-XXX serires USB 3.1 Fiber Active Optical Extension Cable-type A Male to type A Female, with power supply Y-cable are also called USB 3.0 AOC, Fiber Optic USB Cable, Optical USB Cable, USB Active Optical Cable,USB Active Optical Extension Cable. They are specifically designed to extend the transmission distance between USB hosts and devices, and each cable consists of two USB 3.0 Standard-A connectors. The transmission distance can be up to 100m (330ft) through OM3 pure fiber optical cable, with maximum transmission of 5Gbps.
FUBC-31AAG-XXX is powered by its Y-cable.
Highlight Features:
- High Bandwidth: complied with USB 3.0 standard, up to 5Gbps super speed
- Backward Compatible: Supports USB 2.0/1.1 when work with SuperTT build-in devices
- Long length Transmission: Delivers lossless signals over 100meter maximum length
- Powered by Y-cable (USB 2.0 type-A Male)
- Easy Installation: Plug and play for both sides, unidirectional design
- Supports self-powered USB 3.0 compliant devices
- Durable Construction: Zinc-alloy housing, corrosion-resistant gold-plated connectors
- RFI/EMI Resistance: High resistance to electromagnetic interference, ensuring a safe, radiation-free environment
- Customization: Up to 100m maximum length, logo, and packaging available
Applications:
- Machine Vision Camera Link
- Industrial Control
- Digital Signage
- Home Network Integration
- Medical Device Connectivity
- KVM Extension
- Remote Desktop USB 3.0 Connections
- Security: web camera, access control
- USB 3.0 Devices Sharing: print, scan, storage
Protocols Supported | USB 3.1 GEN 2, USB 3.0, USB 2.0 |
---|---|
Bandwidth | 10Gbps |
Resolution | 2160p and 4K@60Hz |
Connector A | USB 3.1 Type-A Male |
Connector B | USB 3.1 Type-A Female |
Housing | Material: Zinc Alloy, Color: Turquoise |
Cable | Φ4.0mm Hybrid Cable,RoHS compliant PVC Jacket |
Minimum Bend Radius | 30mm |
Length | Up to 50 meters |
