2024-04-26USB3.2 Active Optical Extension Cable-type A Male to Female Y Cable Power Supply
- USB 3.2 Type-A Male to Female Link Cable
- USB 3.2 up to 10Gbps@20m(65ft)
- Practically Zero EMI/RFI profile for flawless performance
- Hybrid design requires no external power
- Drag chain test 20 million times
- Type-A Female with Y Cable power supply,optioncal with locked screw
The FUBC-32A0A4-XXX USB 3.2 Gen 2 (10Gbps) Hybrid Active Optical Extension Cable, type A Male to Female, with Y cable power supply, offers a solution to a significant limitation of pure optical cables: the inability to power end devices.
Employing a sleek, high-flex (5.5mm) optical fiber as its transmission medium, the USB 3.2 Hybrid Active Optical Extension Cable innovatively integrates copper for supplying power to both the cable’s active components and the connected device(s), particularly when they’re bus-powered.
Extending the USB 3.2 bus to a remarkable 20 meters or 65 ft, this USB 3.2 Hybrid Active Optical Extension Cable ensures a maximum bandwidth speed of 10 Gbps. With a Y Cable external power supply at host end, perfectly suited for machine vision, industrial, and robotic applications.
Ideal replacement for:
- Unibrain USB AOC Cables;
- L-COM USB 3.1 Active Optical Cables;
- Compufox USA USB 3.0 AOC;
- Edmudoptics USB 3.0 Camera Link Cable;
- Intercon-1 USB 3.1 Hyrbid Active Optical Cable
Highlight Features:
- Drag Chain Test: 20 million times
- Max Transmission Speed: USB 3.2 @ 10Gbps
- Maximum Transmission Length: 20 meters (65ft), USB 2.0 up to 50 meters (115ft)
- Power Supply: Support 5V 300mA max to the remote device
- Easy Installation: Hot-plugging, no driver required
- EMI Resistance: High resistance to electromagnetic interference, ensuring a safe, radiation-free environment
- Customizable: Up to 20m maximum length, custom length(5m/10m/15m/20m), logo, and packaging available
Specifications:
- Host side: USB 3.2 Type-A plug, dimensions: 45.5mm x 16mmx 8mm

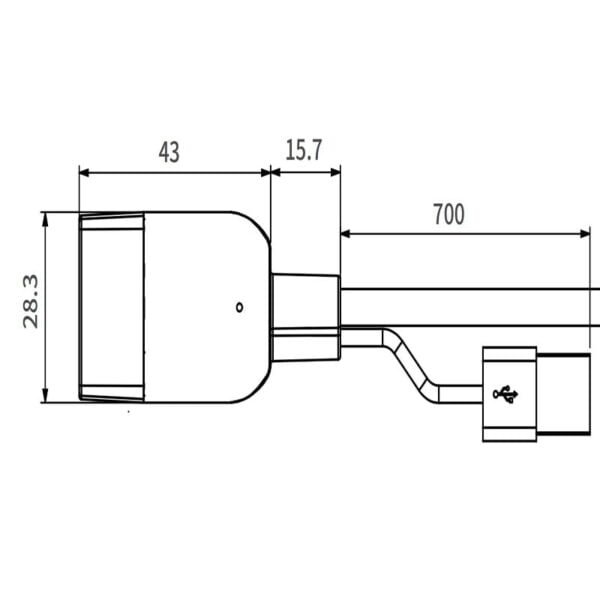

- Device side: USB 3.2 Type-A plug with Y-Cable external power supply, dimensions: 56mm x 28mm x12mm
- Cable diameter: 5.5 mm
- Bend radius(Dynamic/Static) : 75/40 mm
- High flex rated for for >10 million cycles for bending stroke of 1m, velocity 80 cycles/min
- Tensile Strength(Long Term/Short Term): 200N/500N
- Crush Resistance (Long Term/Short Term)/100mm: 200N/500N
- Supply voltage: 4.75 – 5.25 V
- Power dissipation: <1.50 W
- Device supply current: Max 5V – 900mA (up to 20m), 600mA (21m-50m)
- Operating conditions: -10’C -55′C, 15%-80% humidity
- Max temperature gradient: 6′ C per hour
- Compliance: FCC/CE/RoHS
Applications:
- Machine Vision Camera Link
- Medical Imaging Equipment
- Machine Vision
Protocols Supported | USB 3.0, USB 2.0 |
---|---|
Bandwidth | 5Gbps |
Connector A | USB 3.0 Type-A Male |
Connector B | USB 3.0 Type-A Female, Y Cable Power Supply |
Housing | Material: Zinc Alloy, Color: Turquoise |
Cable | Φ5.5mm Hybrid Cable,RoHS compliant PVC Jacket |
Minimum Bend Radius | 75mm(Dynamic)/40(Static)mm |
Length | Up to 20 meters, custom length(5m/10m/15m/20m) available |
