– Fiber Optic USB 3.2 Type-C Link Cable, Compatible for Quest 2 VR Headset
-IP68 TPU Injection Housing
-USB3.2 Gen 2 10Gbps “SuperSpeed” (4K Webcam, SSD storage)
-10Gbps maximum data rate for USB 3.2
-Extended length up to 30m
-Practically Zero EMI/RFI profile for flawless performance
-Hybrid Fiber/Copper design requires no external power

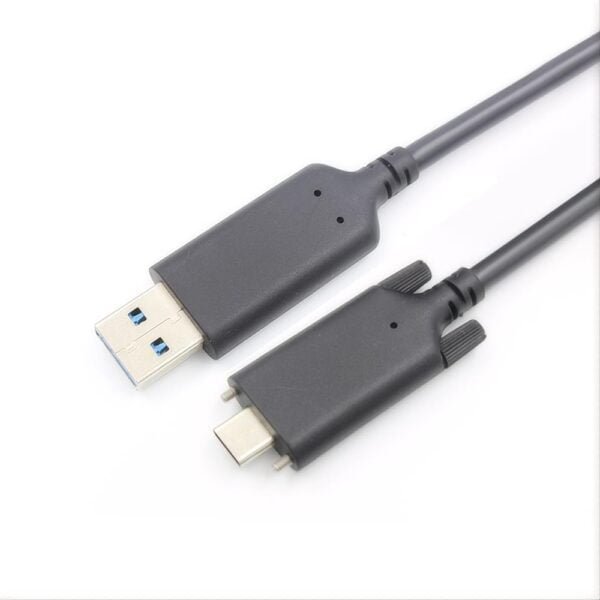

The FUBC-32AC-XXX USB 3.2 Gen2 Active Optical Extension Cable Type-A male to type-C is a premium active optical extension cable with IP68 TPU injection housing designed to extend USB signals over longer distances while maintaining exceptional performance. This USB 3.2 active optical extension cable supports the full range of USB specifications, from USB 2.0 up to the latest USB 3.2 Gen 2 standard, delivering data transfer speeds of up to 10Gbps at an impressive distance of 30 meters (100ft).
Unleash the Power of USB 3.2 Gen 2
Harness the full potential of your USB 3.2 Gen 2 devices with the FUBC-32AC-XXX. This cable is engineered to support all USB 3.2 device types, including control, interrupt, bulk, and isochronous transfers, ensuring smooth and reliable operation for a wide range of applications.
Expand Your Connectivity Horizons
Ideal for a variety of settings, the FUBC-32AC-XXX’s user-friendly A male to C male connector design makes it easy to extend the reach of your USB devices. Whether you’re extending a webcam for optimal positioning in a surveillance system, connecting a digital signage display for captivating visuals, or integrating devices across a larger home network, this cable delivers unparalleled performance and convenience.
Enhanced Performance and Compatibility
Experience the benefits of superior data transfer speeds and unwavering compatibility with the FUBC-32AC-XXX. This cable is backward compatible with USB 3.0 and USB 2.0, offering a significant performance boost over USB 2.0 alone. The FUBC-32AC-XXX is a true plug-and-play solution, working seamlessly with both Windows and Mac operating systems. Its durable PVC jacket provides long-lasting protection without the need for cumbersome screws.
Highlight Features:
- Ultra High Speed: supports USB 3.2 Gen 2 data transfer speeds of up to 10Gbps
- Universal Compatibility: Extends USB type-A male to type-C male connections
- IP68 TPU Injection Housing
- Exteneded Length: up to 30 meters (100ft)
- Backward compatible with USB 3.0 and USB 2.0
- Hot-swappable: True plug-and-play with Windows and Mac
- Durable PVC jacket for reliable protection
Communication & Control:
USB | USB3.2 (Gen 2) | USB3.1 (Gen 2) | USB3.1 (Gen 1) | USB 2.0Max bandwidth: 10Gbps |
Power:
Power Consumption | ≤ 0.55W (5V/110mA) |
Power Carry | 900mA (0-10m)/600mA (11- 30m) |
Environmental:
Operating Temperature | -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing |
Storage Temperature | -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing |
Max Cable Bend Radius | 40mm/1.57in |
Max Pull Tension/Tensile Strength | 10kg/22lbs (100n) |
Dimensions & Weight:
Length x Width x Height | Type A Male Connector: 47.5mm x 18.5mm x 5mm Type C Male Connector: 45mm x 20mm x 5mm |
Cable Diameter | 4.9mm |
Regularoty:
Safety and Emission | CE | FCC | RoHS |
Applications:
- Conference Room
- Digital Signage
- Game Controllers
- Hard Drives
- Home Theatre
- LED Signboards
- Mobile Terminal
- Medical imaging equipment
- Security monitoring system
- Scanners
- Touch Screens
- Webcams and Access Control Systems
USB Connector Type References:
USB 2.0 Type A USB 3.0 Type A USB 3.1 Type A |
USB 2.0 Type C USB 3.0 Type C USB 3.1 Type C |
USB 2.0 Type B | USB 3.0 Type B |
USB 2.0 Micro B | USB 3.0 Micro B |
USB 2.0 Mini B USB 3.0 Mini B |
Warranty: 2 Year Warranty
Protocols Supported | USB 3.2 GEN 2, USB 3.0, USB 2.0 |
---|---|
Max. Data Rate | 10Gbps |
Connector A | USB 3.2 Type-A Male |
Connector B | USB 3.2 Type-C Male |
Housing | IP68 TPU Injection Housing |
Cable | Φ4.9mm Cooper+OM3 Fiber Hybrid Cable,RoHS compliant TPU Jacket |
Min. Bending Radius | 40mm |
Max. Length | 30 meters (100 feet) |
Working Temperature | -20°C to 70°C (-4°F to ~ 158°F) |
Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
