2024-06-17Armored Tactical OM3 Fiber Optical Cable Drum Reel-24LC connectors
-10 times stronger stainless steel armored tactical fiber cable than ordinary fiber cables without compromising quality and flexibility
-Rectractable & Durable design with protection caps;
-Highly flexible construction allows for multiple deployments
-High impact and crush resistance
-Up to 100Gbps bandwidth
-Custom length up to up to 1000m

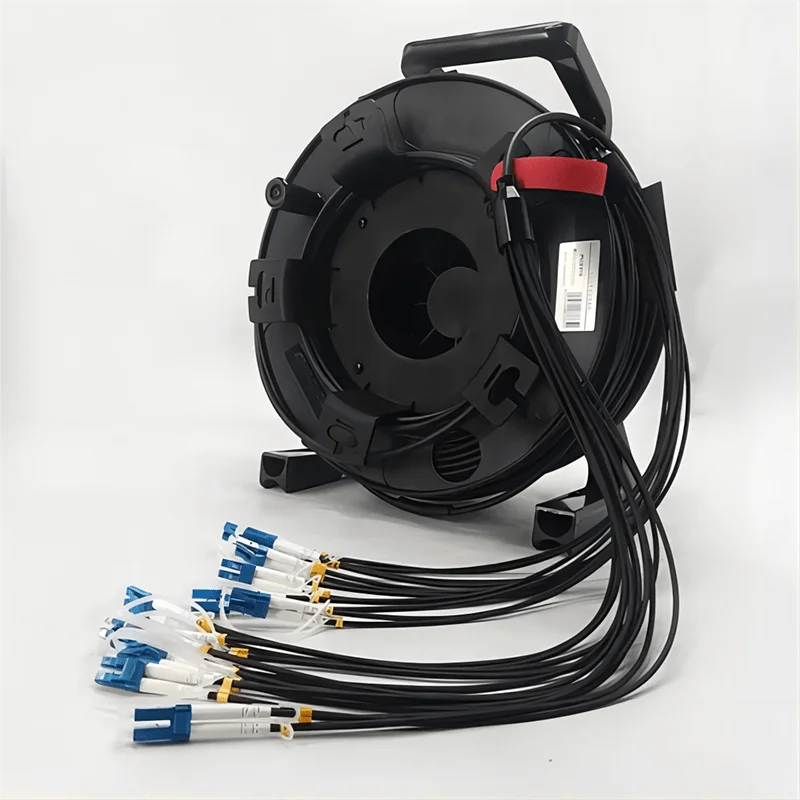

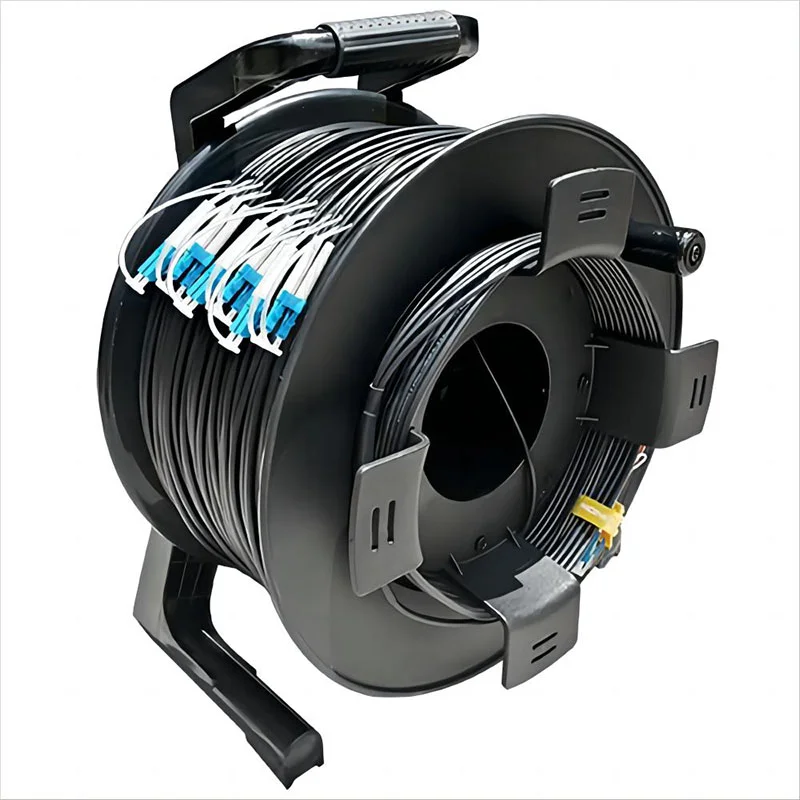

Armored Tactical OM3 Fiber Optical Cable-24core pre-terminated LC connectors on Roxtone PCD Cable Drum
- Built to Last: The FTCD-OM324LC-XXXX series delivers reliable fiber optic connections for demanding environments. Ideal for temporary networks at concerts, festivals, and more.
- Military-Grade Durability: Stainless steel armored cable withstands harsh conditions, exceeding the strength of standard fiber.
- Flexible Deployment: Highly portable design simplifies setup and coiling for multiple uses. Perfect for event organizers and rental services.
- Fast & Easy Setup: Pre-terminated LC connectors and Roxtone PCD cable drum ensure quick deployment. Includes storage drum extensions for effortless access.
- Extended Reach: Transmit data over long distances (up to 1,000 meters) with high-quality 24-core OM3 fiber.
Key Features:
- Rugged stainless steel armored cable
- Pre-terminated LC connectors for swift setup
- Roxtone PCD unbreakable cable drum with winder
- High impact and crush resistance
- Wide temperature range operation
- Adjustable drag brake and direct crank rewind
- Permanent handle for easy transport
- Includes: 24-core OM3 fiber cable, cable drum, zinc alloy caps
This tactical armored OM4 Fiber Optical Cable reel comes with following accessories:
- 1x Stainless Steel Armored, TPU Sheathed, 24-core Fiber Optic Cable on both terminations as junction interfaces;
- 1x Roxtone PCD 235/310/380 portable but unbreakable cable drum with winder;
Crafted with high-quality 24-core OM4 pure fiber optical cable, this tactical OM3 Fiber Optical Cable reel is designed to extend the transmission distance between data source and display devices with a maximum length of 1000 meters for, which offer unmatched transmission capabilities.
Applications:
- Remote video production & broadcasting
- Field deployments in harsh environments
- Temporary network installations (events, concerts)
- High-traffic areas
- Security & sensing applications
Replacements for:
Connectors | LC simplex, blue |
---|---|
Structural Layers | Tightly wrapped optical fiber + spiral-armored tube + Kevlar + metal braid + outer jacket |
Fiber Type | Multi-mode OM3-300 (50/125μm) |
Fiber Wavelength | 850 – 1300nm |
Number of cores | 24 |
Bandwidth | 10Gb/s within 300 meters |
Branch Length | 0.5M (Customization available) |
Reinforcement Structure | Dupont Kevlar with metal weave |
Spiral Tube | Φ2.8mm,Silver,SUS 201 Stainless steel |
Outer Jacket | Φ5.0mm,Matte Gray,Matt Frosted TPU,RoHS compliant |
Effective Bandwidth | 850nm≥2000MHz · km;1300nm≥500MHz · km |
Attenuation | 850nm≤3.5 dB / km;1300nm≤1.5 dB / km |
Tensile (LC connector) | Long-term 50N; short-term 60N |
Tensile (optical cable) | Long-term 400N; short-term 800N |
Compressive Strength | Long-term 2000N /10cm; short-term 3000N /10cm |
Custom Length | Up to 1000 meters |
Operating Temperature | -20~+85°C |
